MODEL：DSTPM-100A

POWER：75KW

HORSEPOWER：100HP

Product desciption

Main advantages of two-stage PM motor vsd screw air compressor:

◆ Adopt customized energy-saving two-stage compression airend line design, the airend is more efficient
◆ Rapid oil spray cooling is adopted to improve the adiabatic efficiency
◆ At the same power, the capacity of two-stage compressor can be increased by more than 15%
◆ Low speed design, more quiet compressor operation
◆ With permanent magnet frequency conversion technology, no matter full load operation or fluctuating gas demand, can maintain high efficiency
◆ Frequency conversion start, to avoid the impact of power grid current

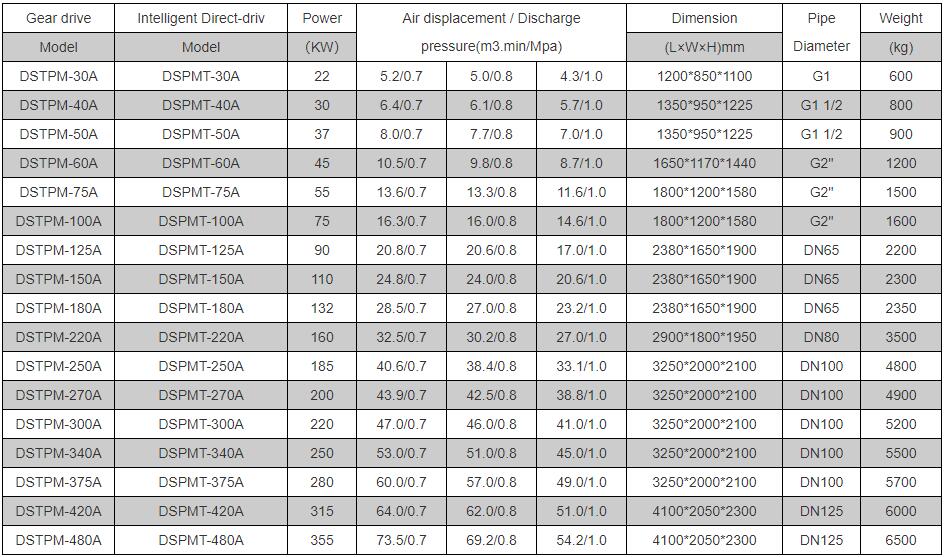

Technical parameters of Two-stage PM motor VSD Screw Air Compressor

Gear drive	Intelligent Direct-driv	Power	Air displacement / Discharge pressure(m3.min/Mpa)			Dimension	Pipe Diameter	Weight
Model	Model	（KW）	Air displacement / Discharge pressure(m3.min/Mpa)			(L×W×H)mm	Pipe Diameter	(kg)
DSTPM-30A	DSPMT-30A	22	5.2/0.7	5.0/0.8	4.3/1.0	12008501100	G1	600
DSTPM-40A	DSPMT-40A	30	6.4/0.7	6.1/0.8	5.7/1.0	13509501225	G1 1/2	800
DSTPM-50A	DSPMT-50A	37	8.0/0.7	7.7/0.8	7.0/1.0	13509501225	G1 1/2	900
DSTPM-60A	DSPMT-60A	45	10.5/0.7	9.8/0.8	8.7/1.0	165011701440	G2"	1200
DSTPM-75A	DSPMT-75A	55	13.6/0.7	13.3/0.8	11.6/1.0	180012001580	G2"	1500
DSTPM-100A	DSPMT-100A	75	16.3/0.7	16.0/0.8	14.6/1.0	180012001580	G2"	1600
DSTPM-125A	DSPMT-125A	90	20.8/0.7	20.6/0.8	17.0/1.0	238016501900	DN65	2200
DSTPM-150A	DSPMT-150A	110	24.8/0.7	24.0/0.8	20.6/1.0	238016501900	DN65	2300
DSTPM-180A	DSPMT-180A	132	28.5/0.7	27.0/0.8	23.2/1.0	238016501900	DN65	2350
DSTPM-220A	DSPMT-220A	160	32.5/0.7	30.2/0.8	27.0/1.0	290018001950	DN80	3500
DSTPM-250A	DSPMT-250A	185	40.6/0.7	38.4/0.8	33.1/1.0	325020002100	DN100	4800
DSTPM-270A	DSPMT-270A	200	43.9/0.7	42.5/0.8	38.8/1.0	325020002100	DN100	4900
DSTPM-300A	DSPMT-300A	220	47.0/0.7	46.0/0.8	41.0/1.0	325020002100	DN100	5200
DSTPM-340A	DSPMT-340A	250	53.0/0.7	51.0/0.8	45.0/1.0	325020002100	DN100	5500
DSTPM-375A	DSPMT-375A	280	60.0/0.7	57.0/0.8	49.0/1.0	325020002100	DN100	5700
DSTPM-420A	DSPMT-420A	315	64.0/0.7	62.0/0.8	51.0/1.0	410020502300	DN125	6000
DSTPM-480A	DSPMT-480A	355	73.5/0.7	69.2/0.8	54.2/1.0	410020502300	DN125	6500
